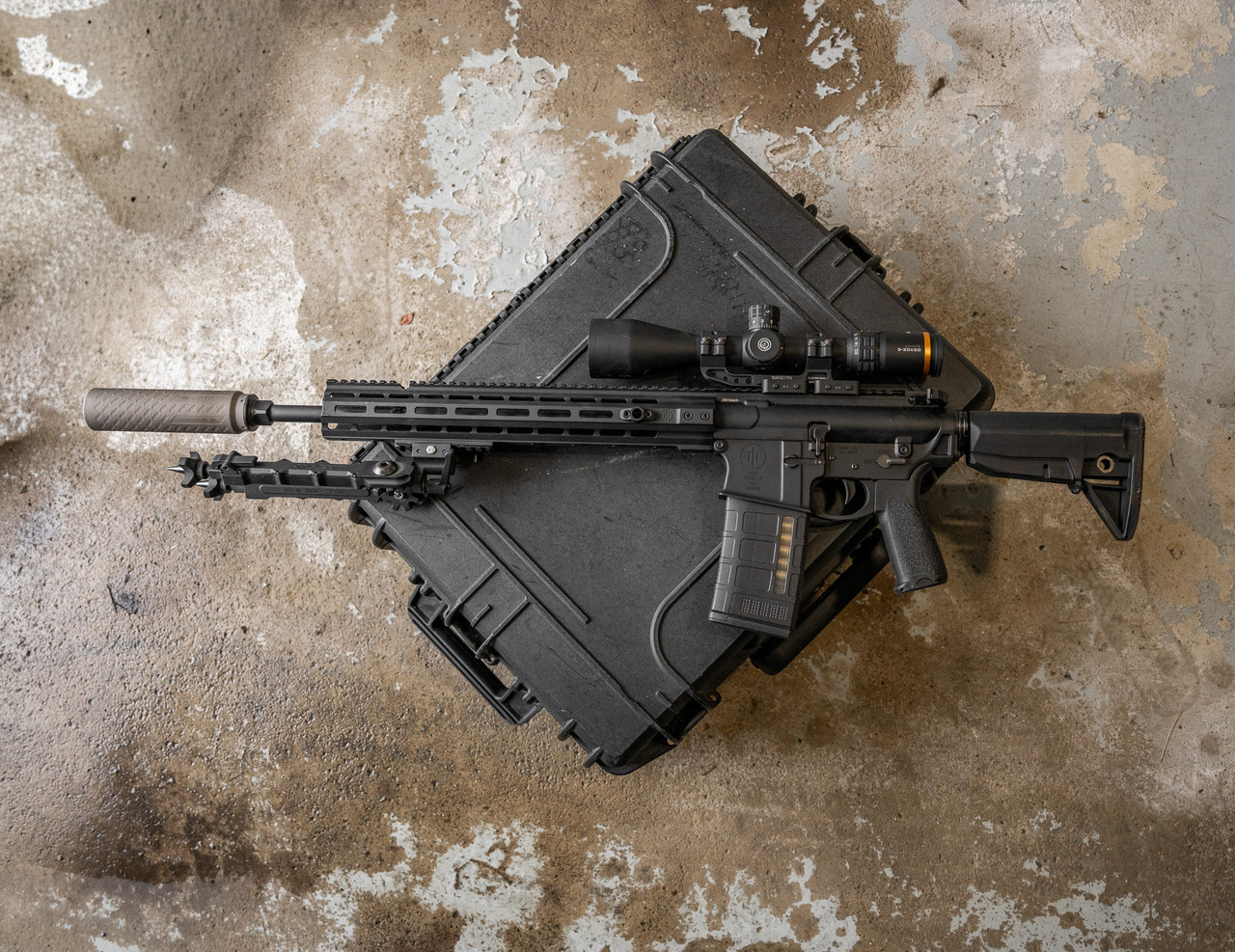

Horus scope with TREMOR8 reticle mounted to a modern sporting rifle

USSOCOM Specific Reticle

TREMOR8™-M

Designed for USSOCOM and specific cartridge requirements, TREMOR8™-M combines Horus patented reticle technology with calibrated wind, zero, drop, and ranging references.

Download Field Guide Contact Horus

TREMOR8™-M at a glance

Wind DotsTime-of-Flight Compensation
Multi-ZeroCaliber-specific references
400–600 mBDC drop marks
20 inTarget-width ranging

Reticle focus

TREMOR8™-M reticle diagram

Complete TREMOR8-M reticle artwork with red illuminated portions

Reticle Technology

Inside the TREMOR8™-M Reticle

The Time-of-Flight Wind Dots are calibrated by cartridge: 6 mph for 5.56 62 gr, 8 mph for 7.62 175 gr, and 10 mph for 6.5 140 gr. These are fixed application references, not a universal ballistic-app output.

TREMOR8-M time-of-flight wind dot diagram

At 100 meters, the guide places the 6.5 140 gr and 5.56 62 gr zero reference 1.0 MRAD above center and the 7.62 175 gr reference 1.7 MRAD above center. It also provides a 0.1 MRAD reference for a 25 meter 5.56 zero.

TREMOR8-M multi-caliber zero point diagram

Dedicated 400, 500, and 600 meter BDC markings cover all three specified calibers, with maximum point-blank use under 400 meters as described by Horus.

TREMOR8-M 400, 500, and 600 meter BDC marking diagram

Horizontal stadia bracket a 20-inch target width for rapid range estimation. Numbers 4, 6, 8, and 10 to the right of the vertical stadia identify mils below the horizontal stadia, not target ranges.

TREMOR8-M 20-inch target-width ranging bracket diagram
Download Field Guide

Horus Licensees

Where to Find Horus Vision Reticles

Program Availability

TREMOR8-M Compatible Products

No current public Horus catalog product is identified as a TREMOR8-M offering.

Ballistic Tools

Horus Ballistics App

Build better firing solutions with range, atmospherics, and proven Horus reticle workflows in one mobile tool.

Learn More App Store Google Play

Reticle FAQ

TREMOR8™-M Questions

TREMOR8-M is a military reticle designed to meet USSOCOM and caliber-specific requirements. Featuring patented reticle technology, it's often used for clone builds.

    The official field guide assigns a different Time-of-Flight Wind Dot value to each specified cartridge.

      At 100 meters, the 6.5 140 gr and 5.56 62 gr zero point is 1.0 MRAD above center, while the 7.62 175 gr point is 1.7 MRAD above center. A separate 0.1 MRAD reference supports a 25 meter 5.56 zero. Drop markings identify 400, 500, and 600 meters.

        The horizontal stadia provide brackets for estimating range from a 20-inch target width. The numbers 4, 6, 8, and 10 to the right of the vertical stadia are mil values below the horizontal stadia, not ranges.

          !
